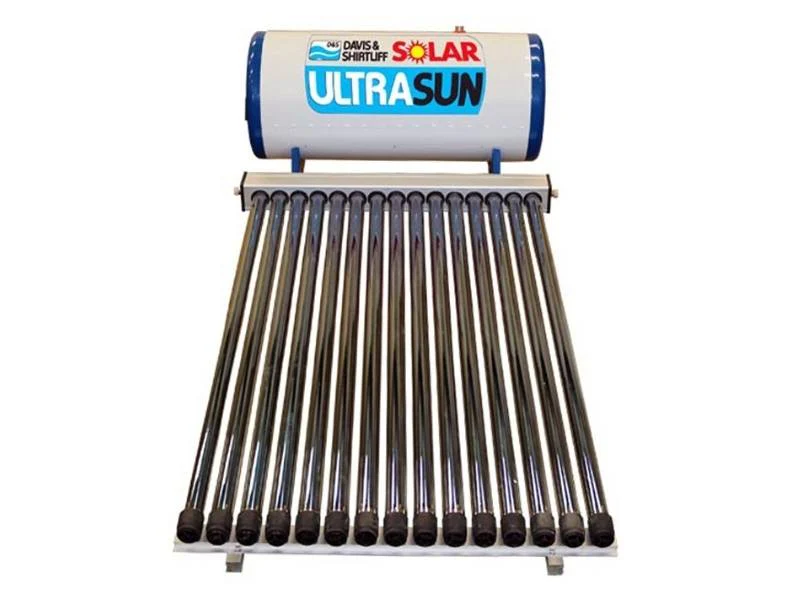

UltraSun UVR VacRod -150

Name: UltraSun UVR VacRod -150
SKU: 22123
Availability: InStock

-1%

0 customer reviews

View details

Current price is: KSh 198,675.00. Original price was: KSh 200,000.00.

Key Features

150 litre solar hot water system ideal for medium household use (serving up to ~5 people).
Advanced vacuum tube heat‑rod technology for efficient solar heat capture and transfer.
Double‑layer borosilicate glass vacuum tubes with special coating for maximum solar absorption.
Heavy‑duty stainless steel SU316 storage tank with insulated painted casing for durability and heat retention.
Aluminium header manifold for effective thermal transfer.
Anodised aluminium support frame for sturdy and long‑lasting installation.
Thermosyphon circulation that heats water naturally without pumps for low maintenance.
Suitable for lightly pressurised systems and mineralised water (with proper pre‑treatment).
Five‑year guarantee on storage tank and heating tubes for peace of mind.

Free Installation Label

🎉 Free Installation on ALL Solar System Kits! ⚡

Categories: Davis and Shirtliff Solar Equipment

Product Description

The UltraSun UV.R VacRod 150 is a premium solar hot water system designed to provide efficient, reliable, and cost‑effective hot water for medium‑sized households. Using advanced solar thermal technology, it captures energy from the sun and converts it into heat with very high efficiency — delivering hot water for bathing, washing, cooking, and other daily needs with minimal reliance on grid electricity.

At the heart of the system are double‑layer borosilicate glass vacuum tubes. Each tube consists of two concentric glass layers with a vacuum between them to minimize heat loss and maximize solar energy absorption, even in cooler or cloudy conditions. A copper heat transfer rod within each tube conducts heat to an aluminium header manifold, which transfers it efficiently into the water. The heated water then circulates naturally into the storage tank on the thermosyphon principle, so no pump or external power is required for circulation.

The 150‑litre storage tank is constructed from heavy‑duty SU316 stainless steel, giving excellent corrosion resistance and long service life. It is encased in an insulated painted steel casing to retain heat and reduce energy loss. A robust anodised aluminium frame supports the tubes and tank, ensuring a durable installation that can withstand typical outdoor environments.

With 15 vacuum tubes and an effective collector area of about 1.4 m², the UV.R VacRod 150 is designed to deliver a daily solar heat output of up to about 8.3 kWh under strong sun conditions and useful performance down to around 5.6 kWh/day under lower irradiation levels — enough for most domestic hot water requirements.

The system is suitable for lightly pressurised installations and can operate with mineralised input water if pre‑treated appropriately, adding flexibility for different water sources. It is built to operate under up to 6 bar pressure and temperatures up to 300 °C within the collector tubes, ensuring robust performance and safety.

Overall, the UltraSun UV.R VacRod 150 Solar Water Heater offers a sustainable, low‑maintenance, and high‑performance solution for residential hot water needs — lowering energy bills, reducing environmental impact, and providing dependable hot water from the sun.
